  • General care

    Thank you for wearing this UNIMATIC® watch. It is a precision timepiece manufactured to the highest quality standards and we hope that it will provide you many years of optimal use. Your UNIMATIC® watch is unique and individually numbered in limited edition batches. Every single reference is Made in Italy and part of a unique edition that will not be re-released. Your watch model reference and serial number are engraved on the case back of the watch. We strongly recommend you purchase genuine UNIMATIC® products and services safely from our many authorised official online and retail stockists. You can consult our stockists list here:

    www.unimaticwatches.com/stockists

    Unique ID seal ensures 100% genuine provenience and entitles to 24 months warranty.

  • Preserve your watch

    WATER RESISTANCE:

    UNIMATIC® watches are designed and singularly tested to provide the maximum performances. Before using any watch in water make sure the crown is screwed in completely and tightly. Do not operate the crown underwater. If used in sea water, rinse the watch in fresh water and dry it completely. Please refer to your model details to check the water resistance specifications.



    TEMPERATURE RANGE

    Your watch works with stable accuracy in a temperature range of 5°C and 35°C (41°F and 95°F). Do not leave your watch in very low temperatures below -10°C or +14°F for a long period of time since the cold may cause a slight time loss or gain. However, accuracy will be restored once the watch returns at normal temperature.



    SHOCKS & VIBRATIONS:

    General light activities will not affect your watch, but be careful not to drop your watch or hit it against hard surfaces, as this may cause damage or scratches to the metal surface.



    CHEMICALS

    Be careful not to expose the watch to solvents, mercury, cosmetic sprays, detergents, adhesives or paints, as the case, bracelet, etc. may become discolored or damaged.



    MAGNETISM

    Avoid contact with magnets, or putting your watch on top of loudspeakers, refrigerators or magnetic cases for tablets or other electrical devices since such objects generate magnetic fields which could disturb the functions of your watch. Our watches are  tested up to 4,800 A/m (approx. 60 gauss).



    PROTECTIVE FILM

    If your watch has a protective lm and/or a sticker on the case back, make sure to peel them off before using your watch. Otherwise, perspiration getting under them may rust the case back.

  • Movement accuracy

    If your watch loses or gains a few seconds per day, you can correct it without an expert aid. The rate of a watch varies slightly depending upon its position. Take it off at night and place it as follows:

    To gain few seconds: Lay the watch flat with the dial uppermost.

    To lose a few seconds: Lay the watch vertically with the winding button downwards.

    To lose more seconds: Lay the watch vertically with the winding button uppermost.

  • Product care

    CARE OF CASE AND BRACELET:

    To prevent possible rusting of the case and bracelet caused by dust, moisture and perspiration, wipe them periodically with a soft dry cloth. For deep cleaning use a toothbrush with soapy water and dry with a soft cloth.



    LEATHER STRAPS:

    UNIMATIC® recommends that you follow the steps below in order to preserve the condition of your leather strap:

    – avoid contact with water and dampness to prevent discolouration and deformation.

    – avoid prolonged exposure to sunlight to prevent fading

    – do not forget that leather is permeable. Avoid contact with greasy substances and cosmetic products.



    SERVICE:

    Like any precision instrument, a watch needs regular servicing to ensure that it functions perfectly. We cannot indicate the exact optimal frequency of such work, as it depends entirely on the model, the climate and the owner’s individual care of the watch. However as a general rule, a watch should be serviced every 4 to 5 years, depending on the conditions in which it is used.



    SCREW DOWN CROWN:

    All of our watches are fitted with a screw-down crown which must be unscrewed to alter the date and time. After use, push the crown into position 1 then press and screw the crown back down, failure to screw the crown down will compromise water-resistance.



    CASE BACK PROTECTIVE FILM:

    If your watch has a protective film and/or a sticker on the case back, make sure to peel them off before using your watch. Otherwise, perspiration getting under them may rust the case back.

  • MODELLO UNO

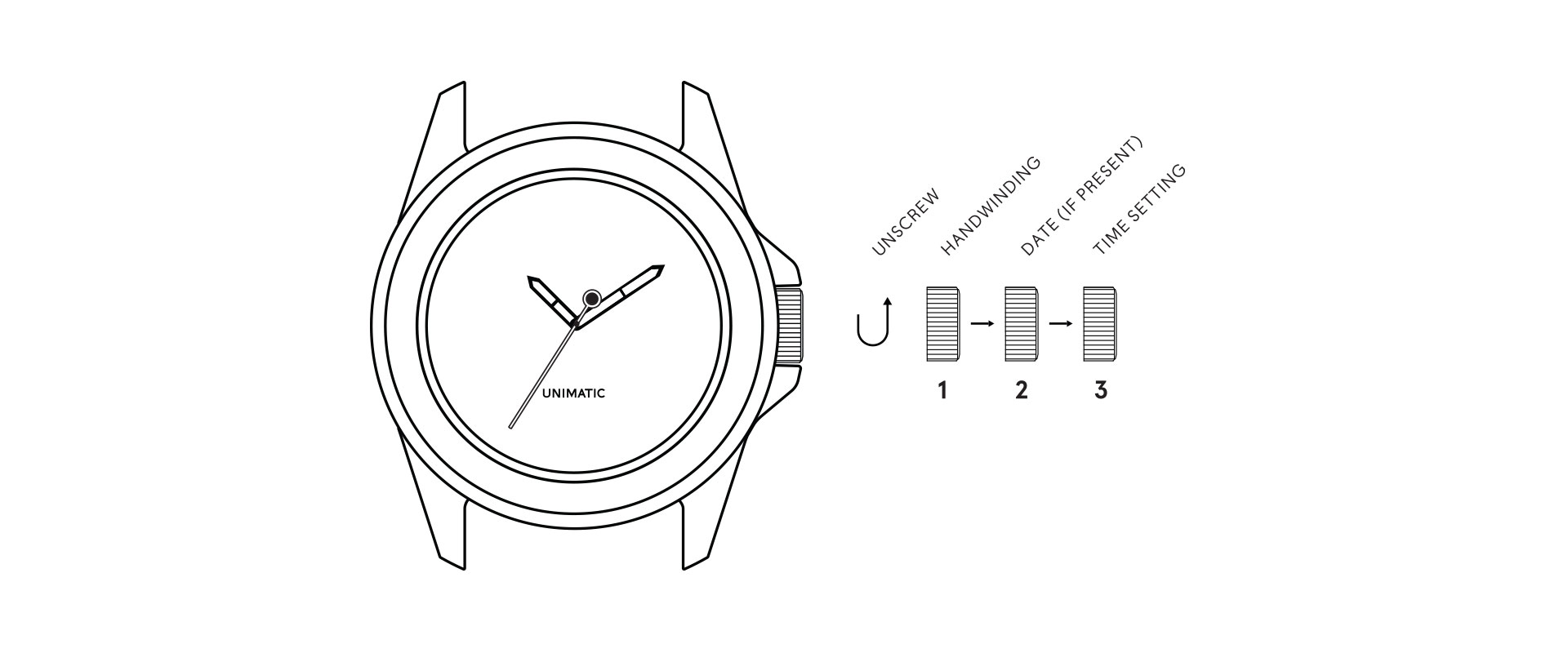

    HOW TO SET TIME AND USE THE CROWN:

    Your watch is fitted with a screw-down crown which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.

    1 – Turn clockwise for manual winding
    2 –Turn counterclockwise for date setting (if present)
    3 – Seconds hand will stop, turn clockwise for time setting

    Synchronise the seconds by pushing the crown back to position 2 to coincide with a given time signal.

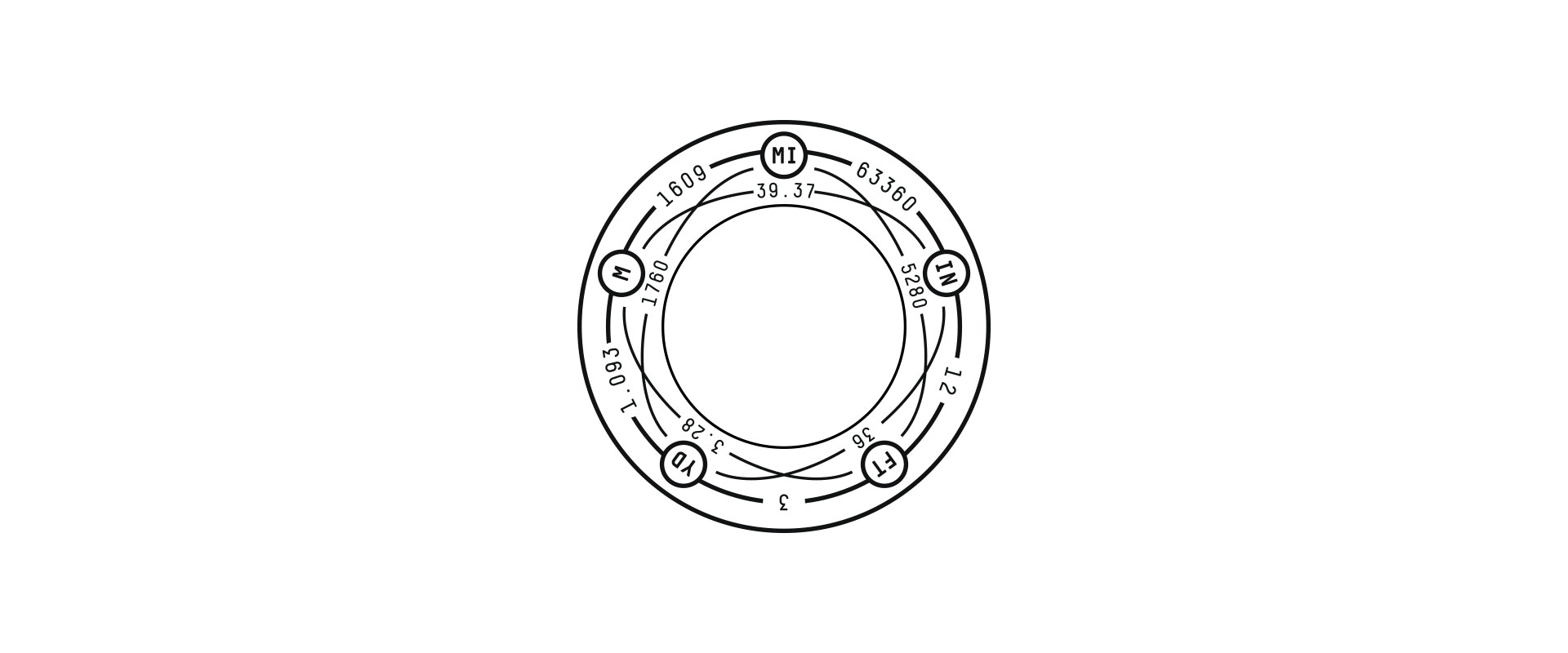

    HOW TO USE THE CASEBACK SCALE:

    You can use the caseback scale to convert measures in miles, meters, yards, feet, inches.
    The values on the connecting lines between units are the numbers of time the smaller unit fits into the larger one. Units are displayed in counter-clockwise order from large to small.

    [ MI > M > YD > FT > IN ]

    With the caseback scale you can convert any measure simply multiplying or dividing the distance by the number shown between the units.

  • MODELLO UNO SWISS

    HOW TO SET TIME AND USE THE CROWN:

    Your watch is fitted with a screw-down crown, which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.

    1 – Turn clockwise for manual winding
    2 – Turn clockwise for date setting (if present)
    3 – Seconds hand will stop, turn counterclockwise for time setting

    Synchronise the seconds by pushing the crown back to position 2 to coincide with a given time signal.

  • MODELLO UNO GMT

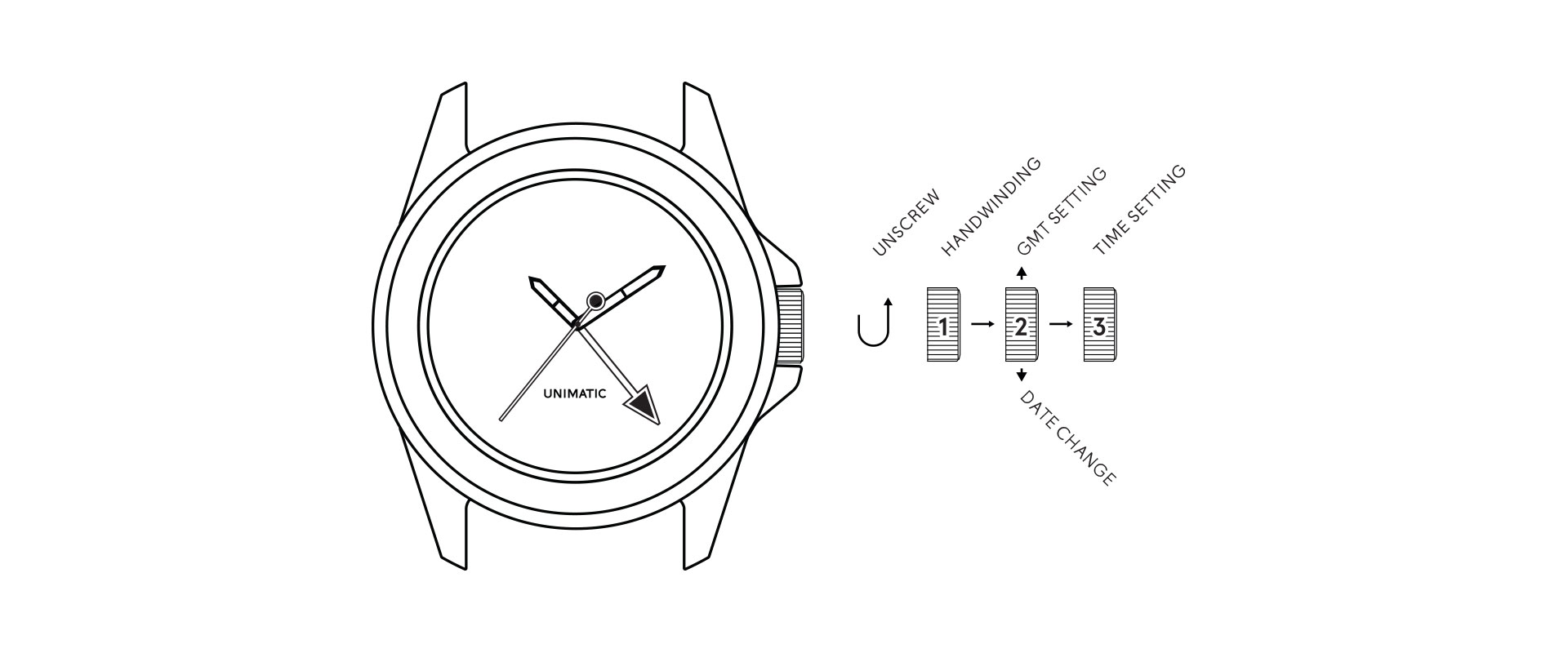

    HOW TO SET TIME, GMT FUNCTION AND USE THE CROWN:

    Your watch is fitted with a screw-down crown which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.

    1 – Turn clockwise for manual winding
    2 – Date and GMT settings
    3 – Seconds hand will stop, turn clockwise for time setting

    Synchronise the seconds by pushing the crown back to position 2 to coincide with a given time signal.

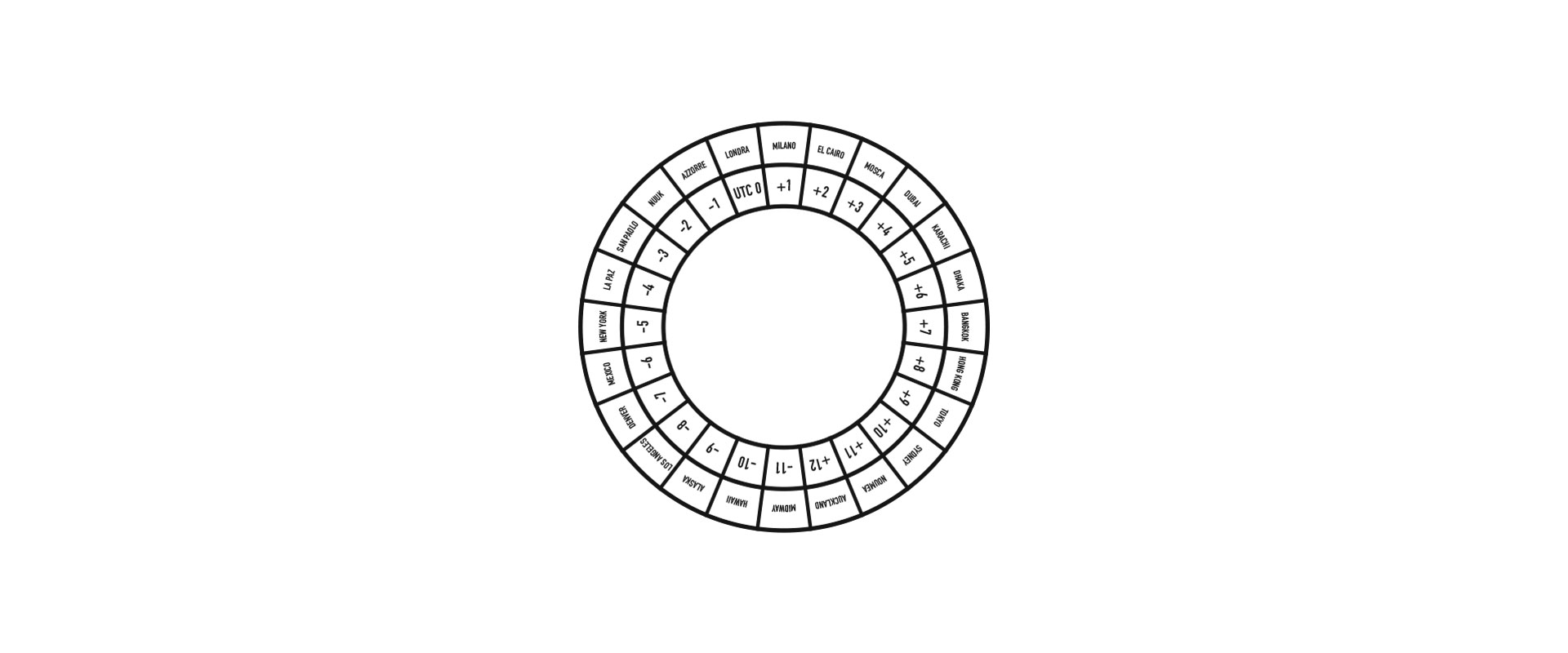

    THE GLOBAL TIME SCALE CASEBACK:

    You can use the global time scale caseback chart to convert between timezones. The internal ring shows the hours differences corresponding to each destination allowing you to easily convert time between locations.

  • MODELLO DUE

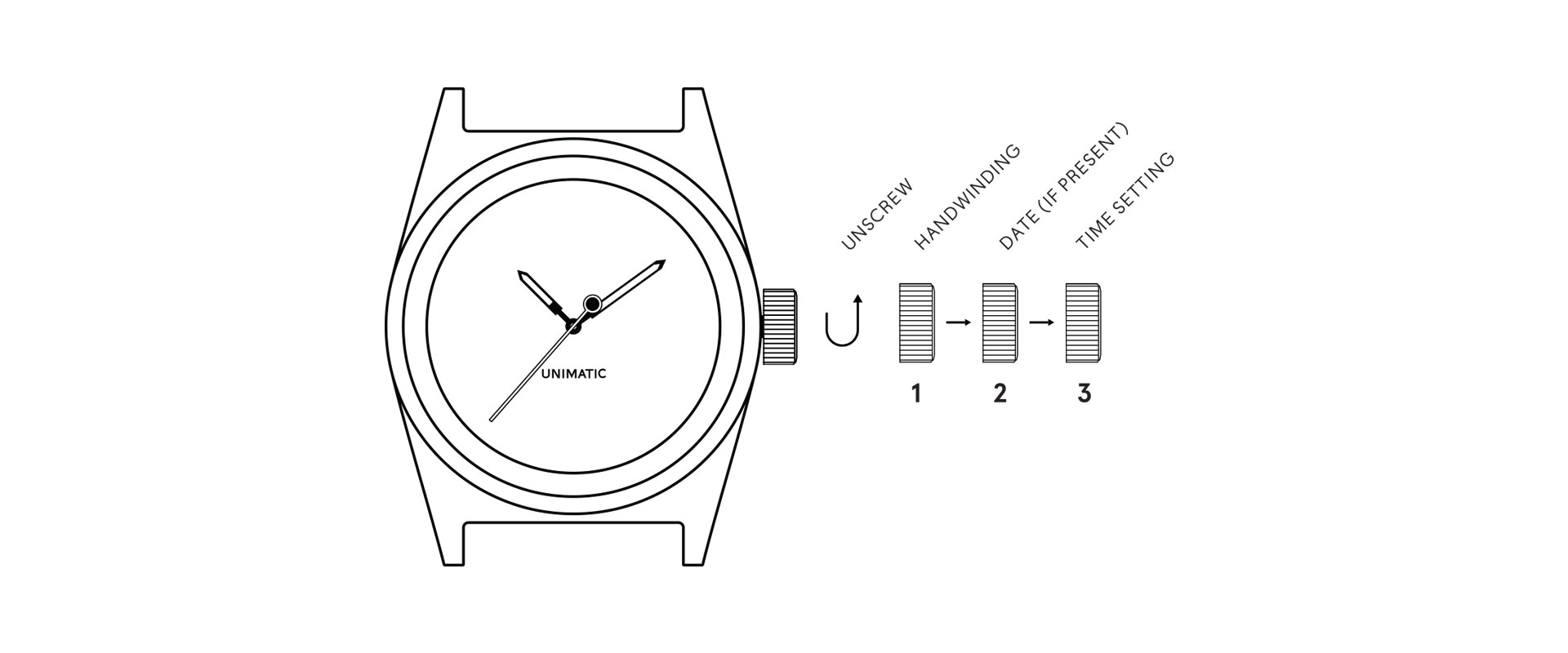

    HOW TO SET TIME AND USE THE CROWN:

    Your watch is fitted with a screw-down crown which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.

    1 – Turn clockwise for manual winding
    2 – Date setting (if present)
    3 – Seconds hand will stop, turn clockwise for time setting

    Synchronise the seconds by pushing the crown back to position 2 to coincide with a given time signal.

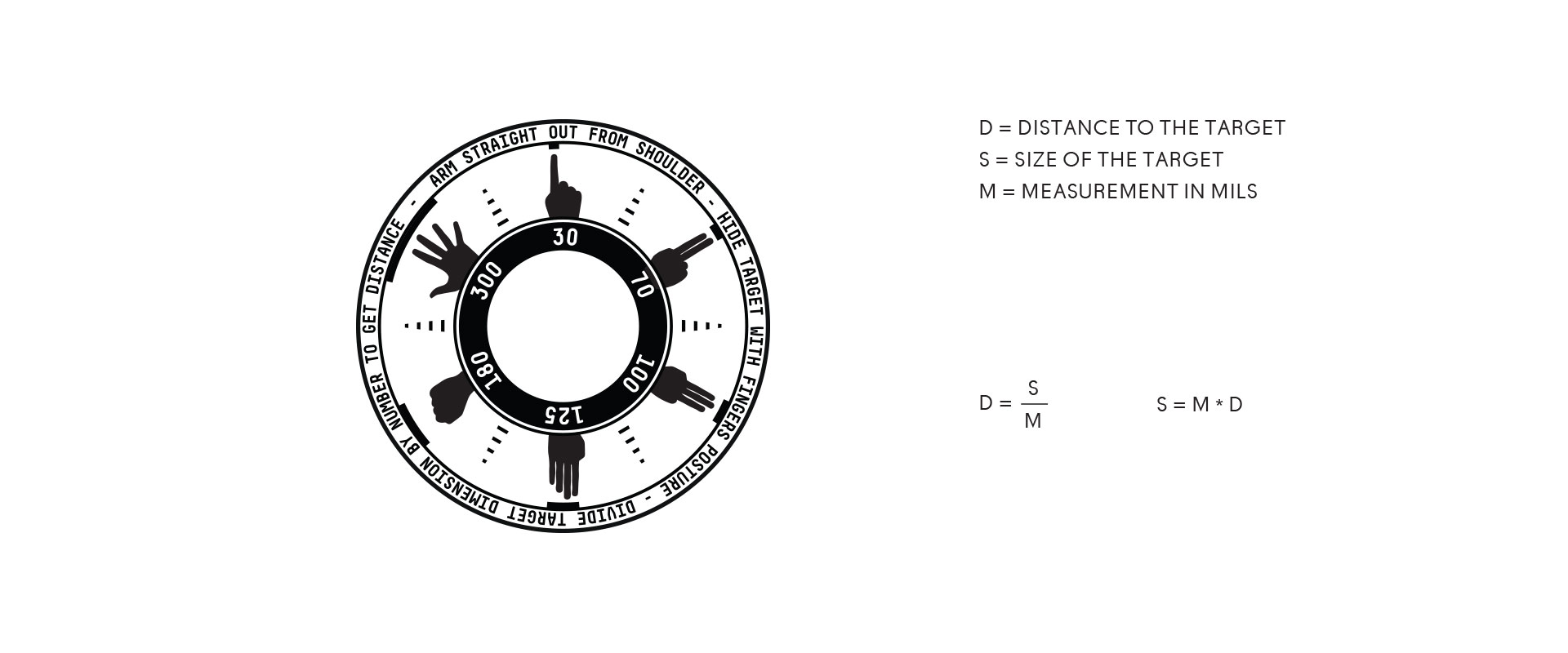

    HOW TO USE THE CASEBACK MILLIRADIAN SCALE:

    A milliradian (mrad), is the angle formed when the length of a circular arc equals 1/1000 of the radius of the circle. Since the radian expresses a ratio, it is independent of the units of length used. It is used to approximate to deterimine size and distance with high accuracy.
    Given distance or size the scale can be used straightening your arm and covering the target with your fingers once established the ratio you can simply multiply or divide to get either size or distance of any object.

  • MODELLO TRE

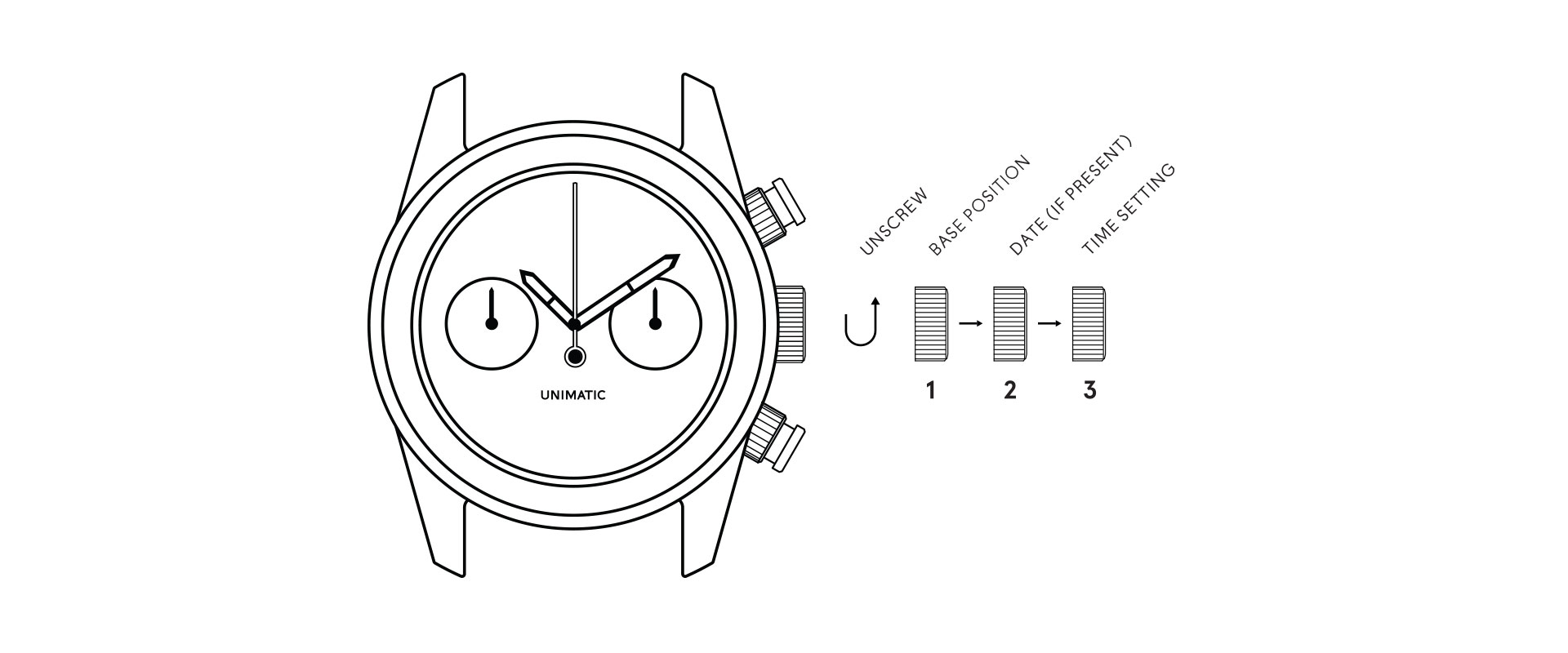

    HOW TO SET TIME AND USE THE CROWN:

    Your watch is fitted with a screw-down crown which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.



    1 – Pull out the crown to the second click position.

    2 – Turn the crown to set hour and minute hand (Check that AM / PM is set correctly).

    3 – Push the crown back into the normal position.



    SET THE DATE (if present)

    1 – Pull out the crown to the first click position.

    2 – Turn the crown clockwise for date setting. (Do not set the date between 9:00PM and 3:00AM, otherwise the day may not change properly. If it is necessary to set the date during that time period, first change the time to any time outside it, set the date and then reset the correct time.)

    3 – Push the crown back into the normal position.

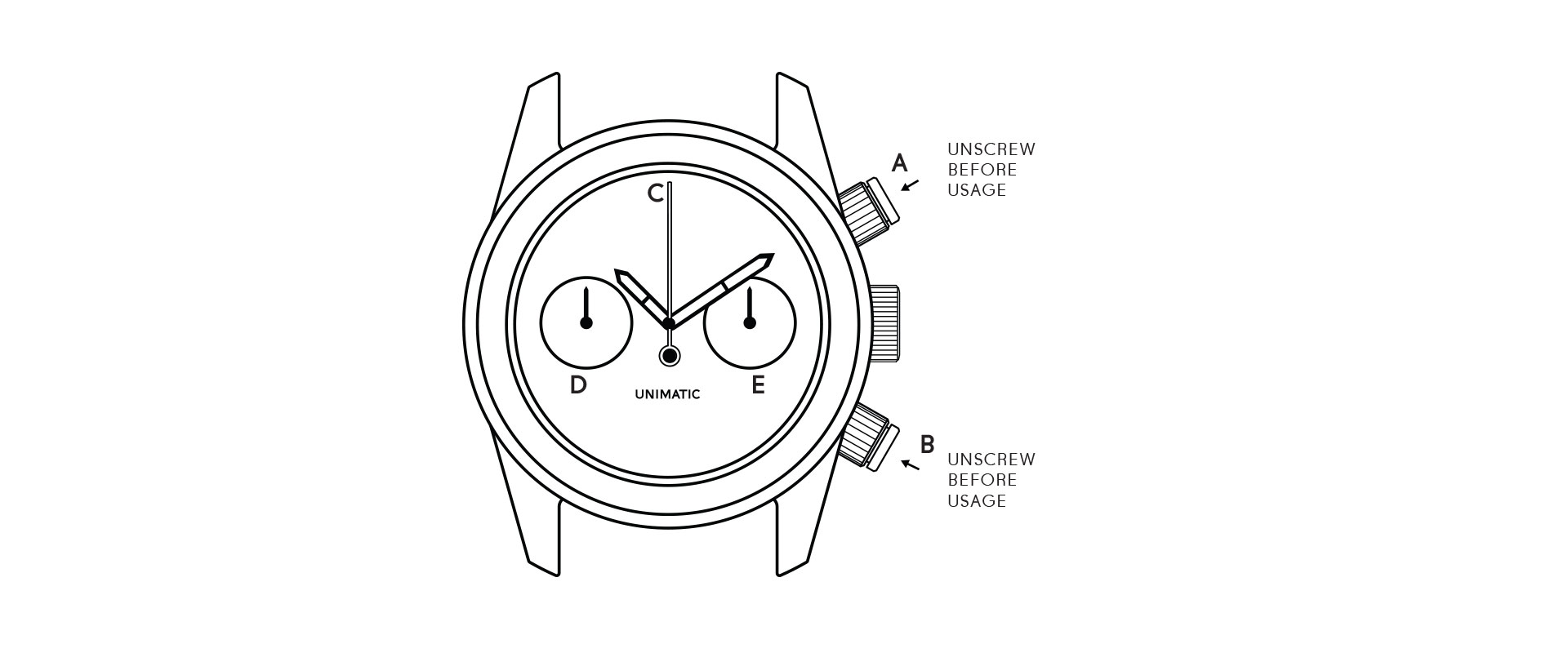

    HOW TO USE THE CHRONOGRAPH FUNCTION:

    A – Start/Stop Pusher [unscrew to use]

    B – Reset Hand [unscrew to use]

    C – Chronograph seconds hand

    D – Chronograph minutes hand

    E – 24hrs chronograph function



    STANDARD MEASUREMENT

    Unscrew both pushers and press the buttons in the following order : A > A > B

    ACCUMULATED ELAPSED TIME MEASUREMENT

    Unscrew both pushers and press the buttons in the following order : A > A > A > B

    Note: The chronograph can measure up to 60 minutes. The chronograph stops after a measurement for 60 minutes.

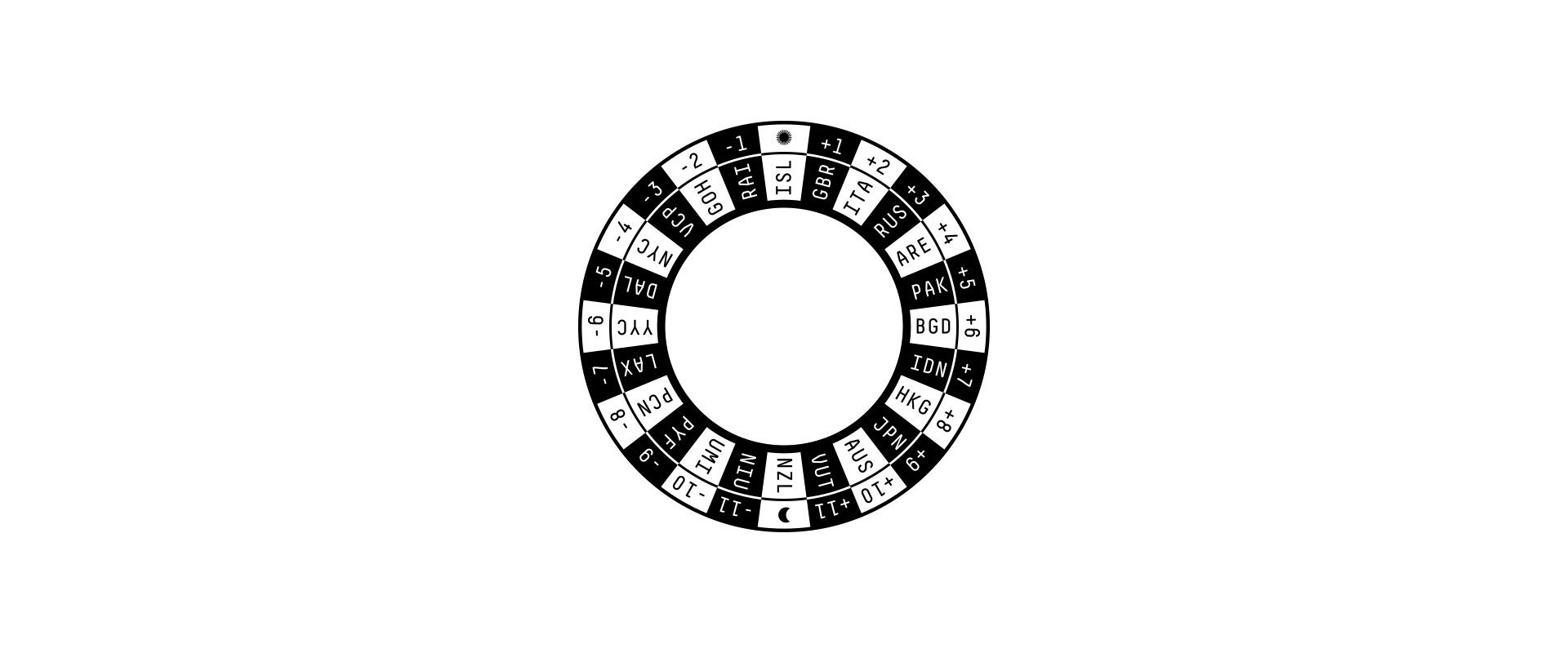

    THE GLOBAL TIME SCALE CASEBACK:

    You can use the global time scale caseback chart to convert between timezones. The external ring shows the hours differences between the different time zones allowing you to convert time between locations.

  • MODELLO QUATTRO

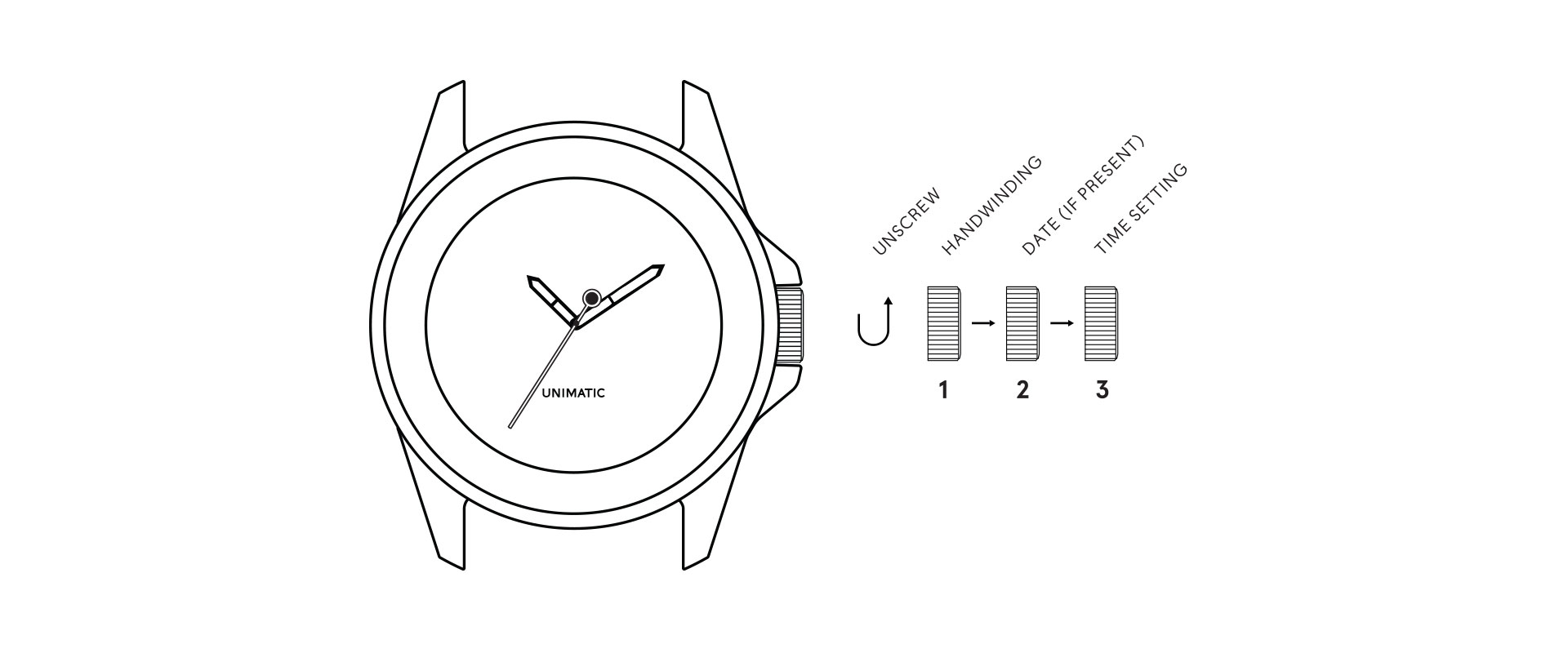

    HOW TO SET TIME AND USE THE CROWN:

    Your watch is fitted with a screw-down crown which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.

    1 – Turn clockwise for manual winding
    2 – Date setting (if present)
    3 – Seconds hand will stop, turn clockwise for time setting

    Synchronise the seconds by pushing the crown back to position 2 to coincide with a given time signal.

  • MODELLO QUATTRO QUARTZ

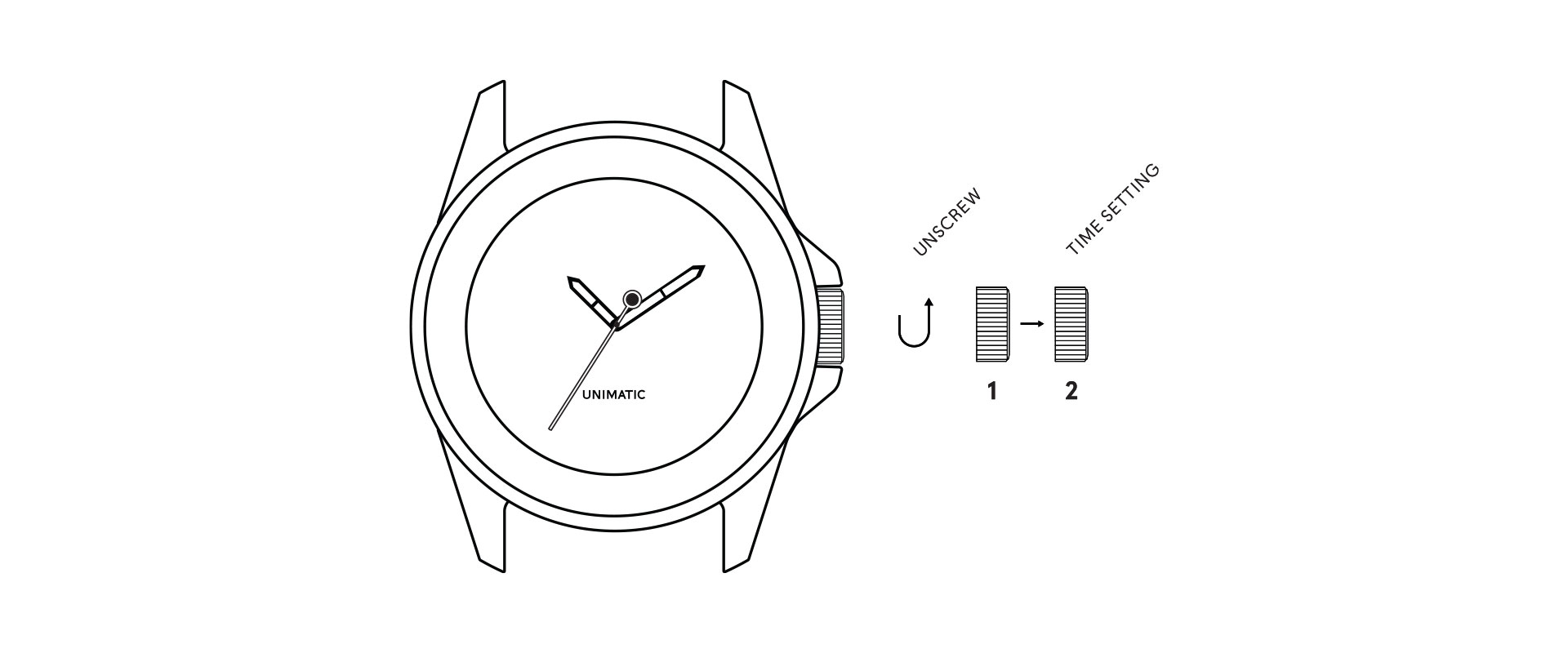

    HOW TO SET TIME AND USE THE CROWN:

    Your watch is fitted with a screw-down crown which must be unscrewed by turning anti-clockwise before setting time.
    After use, push the crown into normal position then press and screw the crown back down: failure to screw the crown down will compromise water-resistance.

    1 – Seconds hand will stop, turn clockwise for time setting

    Synchronise the seconds by pushing the crown back to position 2 to coincide with a given time signal.

  • REGISTRATION

    Register your watch here:

    register.unimaticwatches.com

    Use the code written on the unique ID seal to link the watch to your account.

    Registration provides a direct check and certification for the genuinity of the watch, helps preventing counterfaits, and enable you to receive a quicker support.

  • WARRANTY

    UNIMATIC watches are entirely designed and assembled in Italy with the finest materials and techniques to ensure the best performance and durability. Every watch is tested and verified before shipment: in the unlikely event of a fault, to obtain warranty service or after sales assistance, please contact us at [email protected]

    Your UNIMATIC watch is warranted for a period of twenty-four (24) months, from the date of purchase, under the terms and conditions of this warranty. The international UNIMATIC warranty covers material and manufacturing defects existing at the time of delivery of the purchased UNIMATIC watch (defects). The warranty only comes into force if the warranty card is dated, fully and correctly completed and signed by an official UNIMATIC dealer (valid warranty card). During the warranty period and by presenting the valid warranty card, you will have the right to have any defect repaired free of charge. This manufacturer’s warranty does not cover: normal wear and tear and aging, any damage to any part of the watch resulting from abnormal/ abusive use, lack of care, negligence, accidents (knocks, dents, crushing, broken crystal, etc.), incorrect use of the watch and non-observance of the operating instructions provided (damage caused due to the submersion of the watch with a crown or any of the pushers not fully screwed), watch handled by non-authorised persons (for example for service or repair) or which has been altered in its original condition beyond UNIMATIC’s control. Under no circumstances will UNIMATIC be liable for any indirect or consequential damages of any kind. Any further claim against UNIMATIC, for example for damages additional to the above-described warranty, is expressly excluded.

    The above manufacturer’s warranty is independent of any warranty that may be provided by the seller, for which he carries sole responsibility; does not affect the purchaser’s rights against the seller nor any other mandatory statutory rights the purchaser may have against the seller.

  • REPAIRS

    To request a repair and receive support, please email:

    [email protected]

    Please try to include pictures or videos to show the problem you’re facing if possible.

  • RETURNS

    If your purchase is not exactly what you are looking for, you have 14 days from receiving your order to arrange your return. To initiate the return, please email: [email protected] . We will provide you with the necessary return form and book the return shipment for you. The cost of a single return is 30EUR.

    Please note: You don’t pay the prepaid return cost separately, it is deducted from your refund. By using this returns waybill you consent to the deduction of the return post cost from your refund.

    When returning items to us, please ensure they are in “as new” condition, well packaged in their original packaging (carton box, toughcase etc.) and protected. We cannot guarantee full refund in case of damaged returns. Personalized items are made to order and cannot be returned or exchanged. Returns made with an alternative provider will be returned to the sender.

    TRY ON:

    We understand buying online without trying it on could be tricky sometimes, so here’s our advice to you:
    We advise our customer to wrap the watch around their wrist instead of fastened it up. Essentially, once the strap is fully fastened, its worn. All returns that are considered worn will be charged a 2% restocking fee.
    For any further enquiries please contact customer service.
